NPT Cable Gland
The full form of NPT thread cable gland called National Pipe Thread, it’s 60-degree taper pipe thread of US standard for use in North America, so the NPT cable gland means the gland adopts NPT thread for North America market. It’s widely installed in the water, electrical circuit, and gas pipe industries.

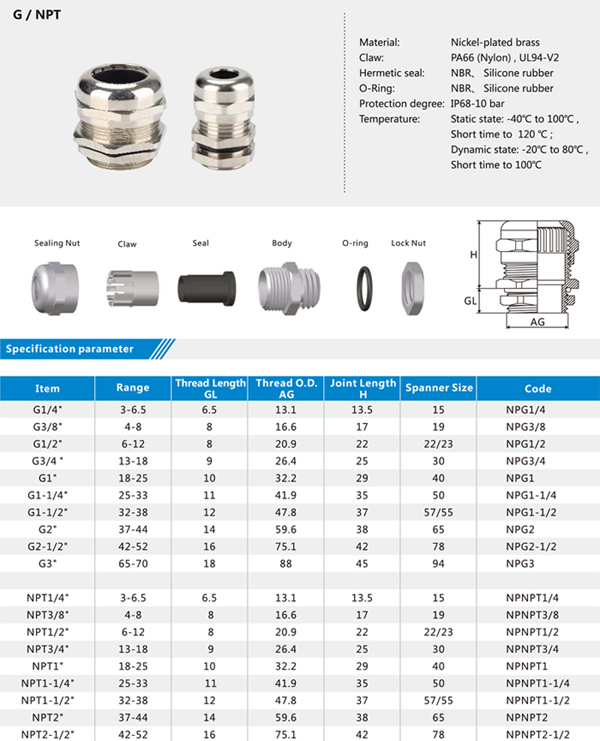

NPT thread cable gland is one of the most popular types of cable gland in the market, the different sizes showing as NPT size, such as NPT 1/16, NPT 1/2, NPT 3/4, you should check the NPT cable gland size chart if you want to know the cable gland hole size in mm.
NPT cable glands made of different materials such as brass, stainless steel, and nylon, it could be also used in different applications to be marine cable glands, EMC cable glands, armored cable gland.
CEO Notes
Hey, Thanks for visiting our website. We could provide you with all dimensions of the NPT cable gland as our size chart showing, the reasonable design ensure the entry cables and wires safely inserted in the instruments. We make any type of NPT cable glands according to your customized design drawings, please contact me when you need any help. Thanks!
Questions You May Ask About Our NPT Cable Gland
NPT cable gland is the cable gland with 60-degree taper pipe thread of US standard, it’s naming because of the thread type. The size ranging from 3/8″ to 4″ as you need.
NPT is the meaning of National Pipe Thread, it the popular thread type in North America.

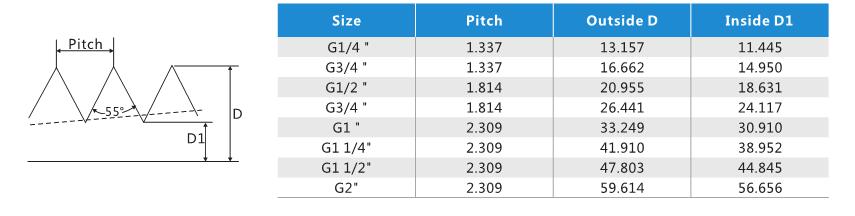

ET thread is equal to Chinese G thread, so we could use G thread instead of it.

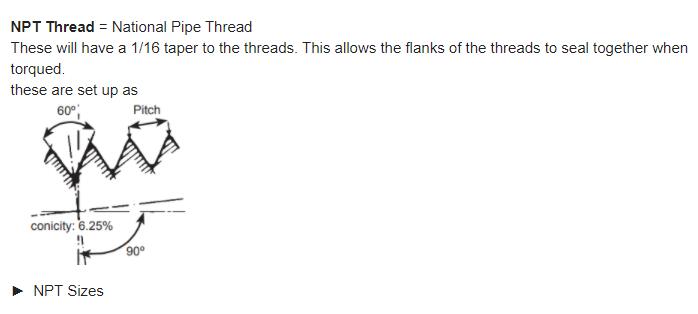

The difference is only the thread types, please see the below thread images:
